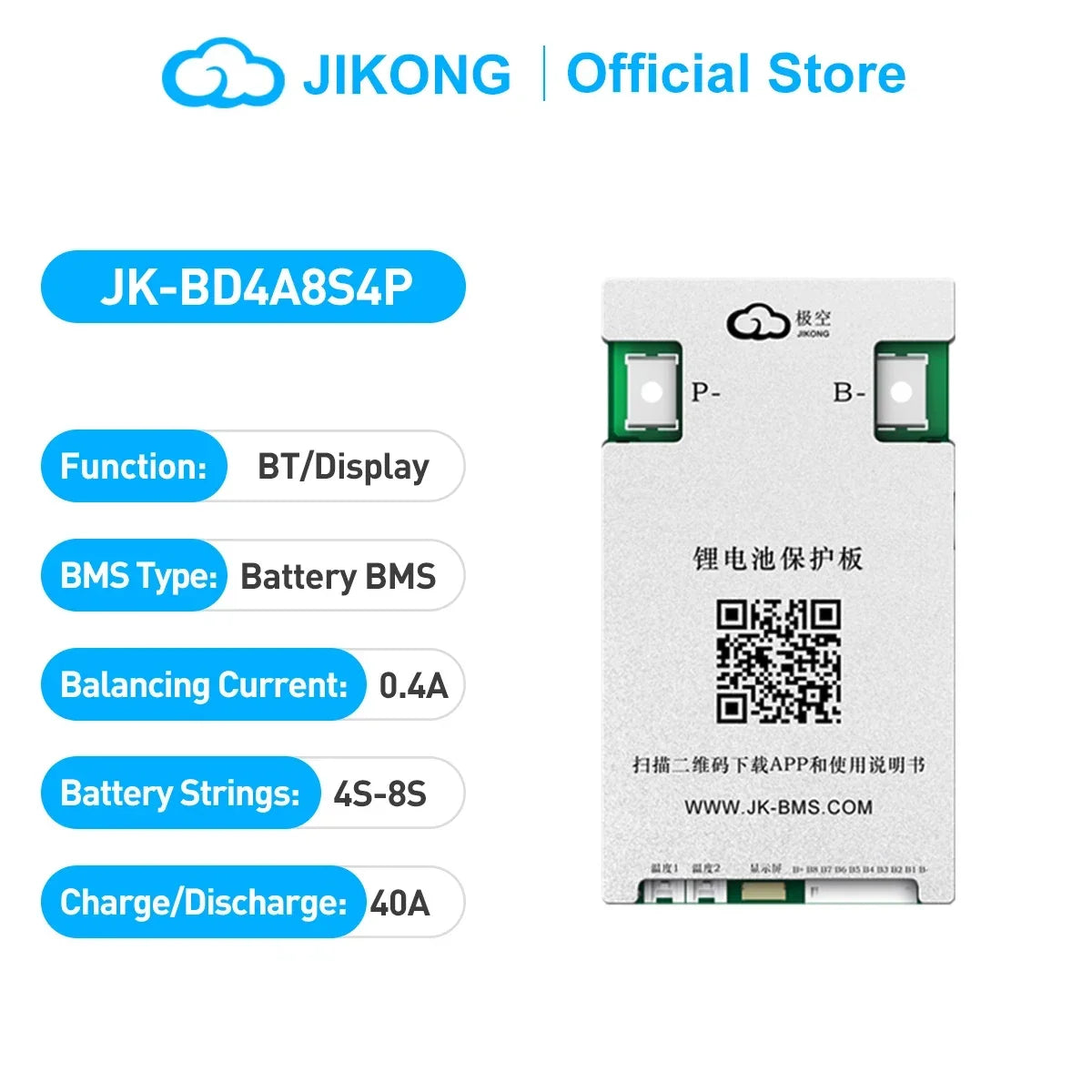

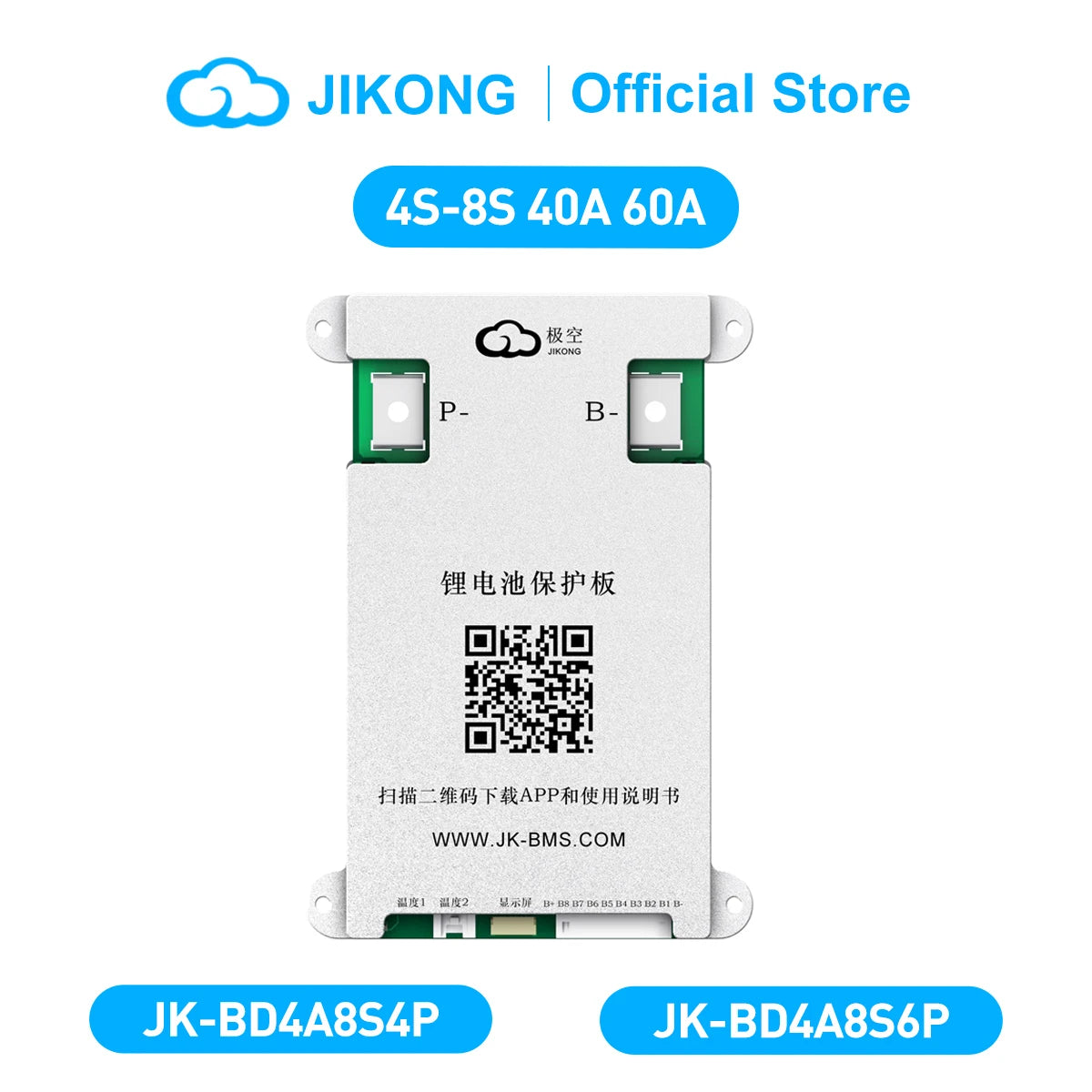

JIKONG BMS JK-BD4A8S4P JK-BD4A8S6P Lifepo4 Li-Ion Lto Battery Active Balancer Smart BMS 4S/8S 12V/24V 40A 60A

JIKONG BMS JK-BD4A8S4P JK-BD4A8S6P Lifepo4 Li-Ion Lto Battery Active Balancer Smart BMS 4S/8S 12V/24V 40A 60A

$49.99
$49.99
Sale Sold out
Shipping calculated at checkout.
Color
                            JIKONG Active BMS                                                   What is Active Balancing (Non-lossy Balancing)

Active balancing transfers energy from cells with higher energy to those with lower energy, achieving voltage balance with minimal energy loss. It operates continuously,
regardless ofcharging, discharging, or idle states, until the voltage difference is within a set range

Since it involves energy transfer without heat generation, active balancing can use larger currents (commonly 1-2A) without affecting cooling. It is more suitable for
larger capacitybattery packs due to longer balancing times and higher currents.

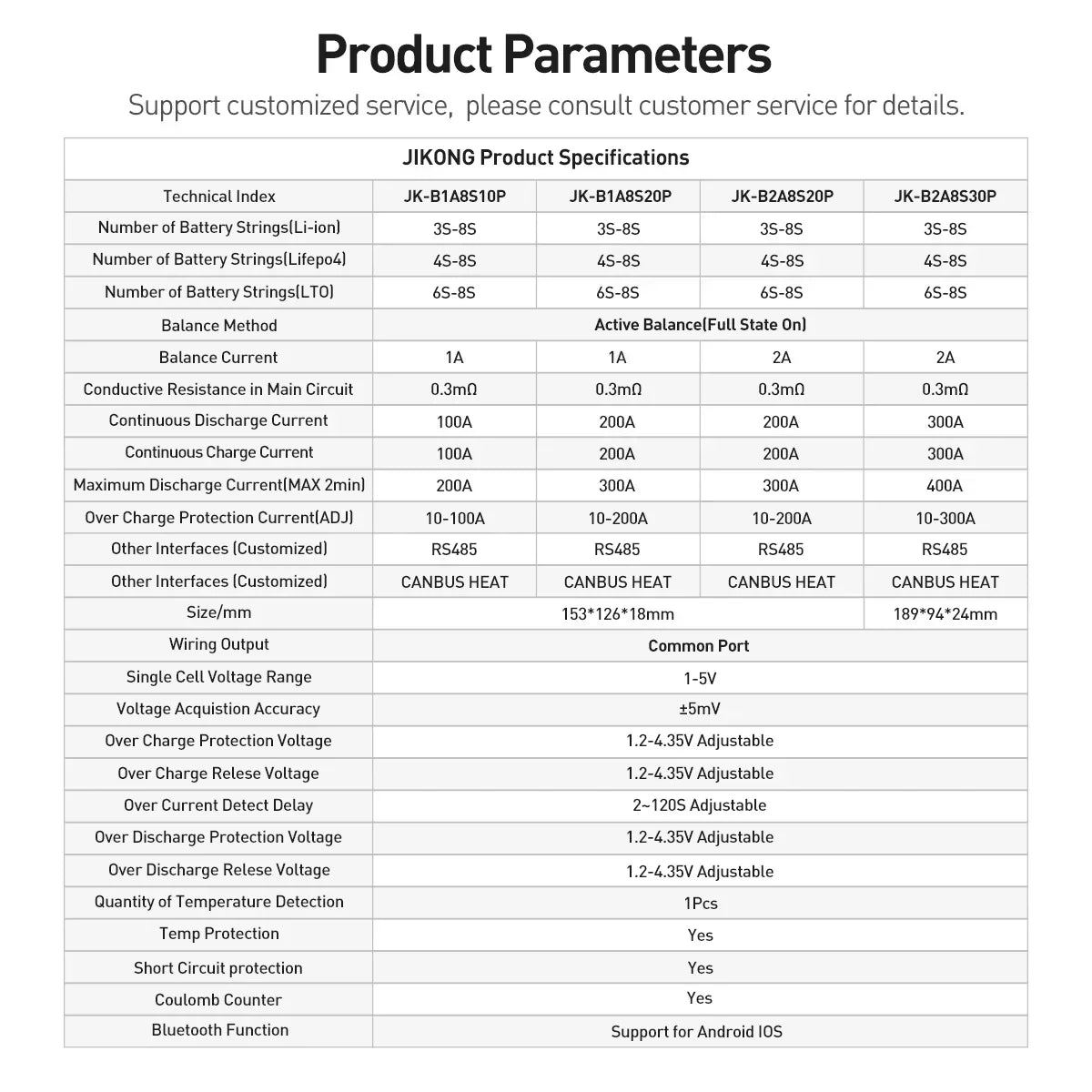

Model: JK-B1A8S10P  JK-B1A8S20P  JK-B2A8S20P  JK-B2A8S30P

Active equalizing current:  JK-B1A8S10P  JK-B1A8S20P = 1A

Active equalizing current:  JK-B2A8S20P  JK-B2A8S30P = 2A

Maximum charging current: JK-B1A8S10P = 100A  JK-B1A8S20P = 200A

Maximum discharge current JK-B2A8S20P = 200A  JK-B2A8S30P = 300A

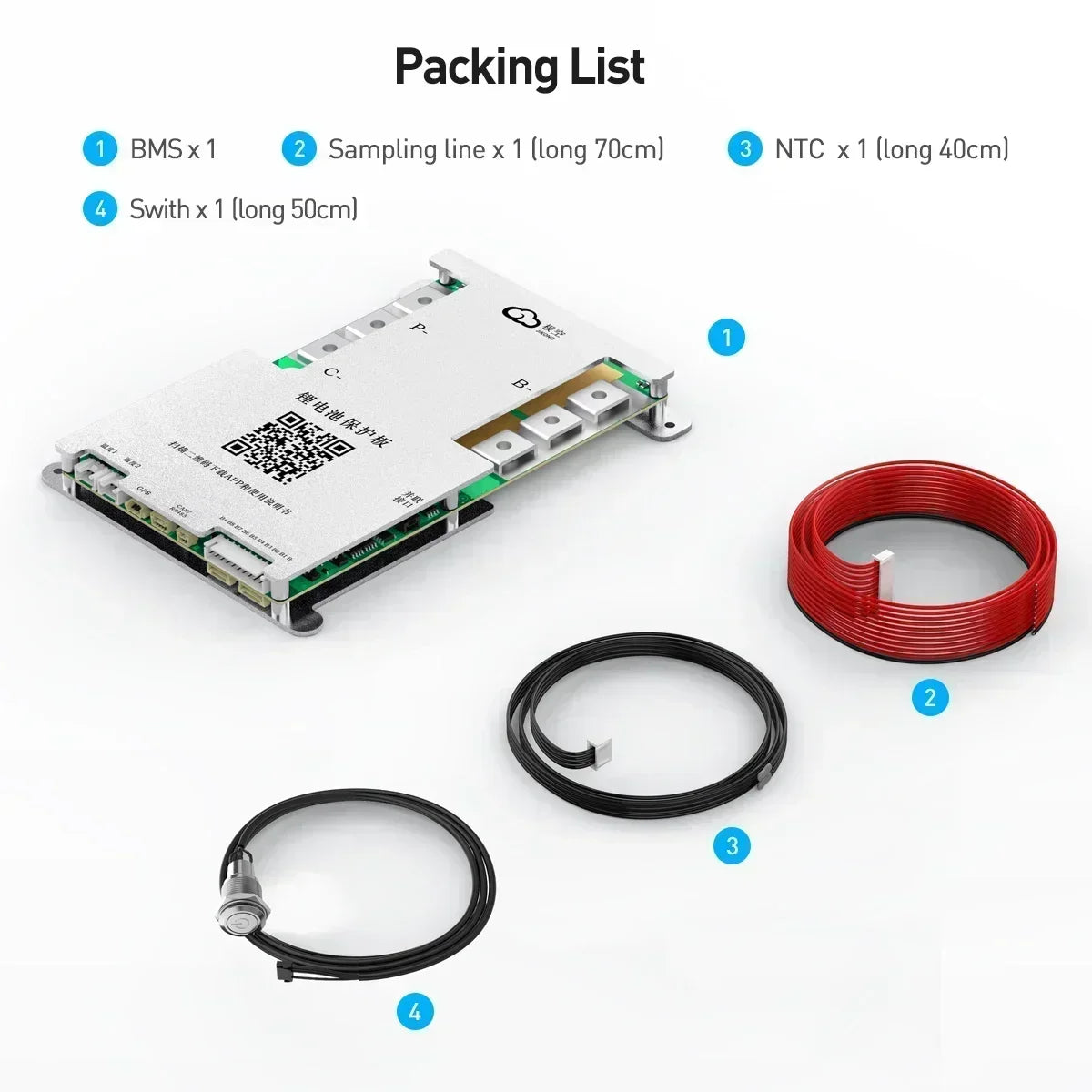

Package:
Switch key x 1
BMS x 1
Sampling Cable x 1
NTC x 1
